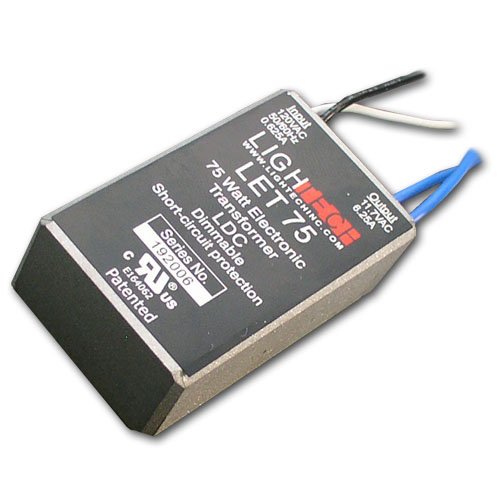

Electronic Transformer LET 75 AC (12V/75W) for halogen lighting.
Electronic internal resetable protection, Patent pending auto heat regulation that also automatically acts as overload protection. Thermal auto-reset 125ºC switch.
All order placed before 3pm EST ship same business day.
PC plastic casing
Dimmable with standard dimmer
(LxWxH) 2.09″x1.29″x0.78″
Weight: 3 ounces
Lead wire length: 6″
DT: 40ºC
Max ambient temp. 50ºC
Output wire – Blue – 14AWG 200ºC
Input wire – White/Black – 18AWG 150ºC
Max load 75W
Minimum load w/o dimmer 10W
Minimum load with dimmer 20W
Input 120V 60Hz
Output at max. load 11.75V 40kHz
Input current at max. load 0.635A
Output current at max. load 6.35A
Power factor min. 0.95
Product Features
- Max 75 watt 12 volt AC electronic transformer
- Class 2 remote transformer
- Input: 120 Volts, 60Hz, 0.635 Amps
- Output max load: 11.7 Volts, 40 kHz, 6.35 Amps
- Thermal auto reset 125c switch; UL listed
Related posts:
LET-60 12V 60W AC Class 2 Electronic Transformer by Lightech
LOGISYS RM02 12v 15A relay w/ remote control kit
Low Voltage Transformer for Malibu Outdoor Lighting Systems
SUPERNIGHT 16.4ft 5M Waterproof Flexible strip 300leds Color Changing RGB SMD5050 LED Light Strip Kit RGB 5M +44Key Remote+12V 5A Power Supply
Lycheers 16.4ft 5M Waterproof Flexible strip 300leds Color Changing RGB SMD5050 LED Light Strip Kit RGB 5M + 44Key Remote+12V 5A Power Supply
Lemonbest® 10w 12v RGB Multi-color Ip68 Waterproof LED Underwater Light Landscape Fountain Pond Lamp Bulb with Remote Control
It works, No hum I bought two of these for under-cabinet lighting in my kitchen. One was to replace exactly the same model transformer that went bad after some years of use. I think it died because it was run for a long time with less of a load (one bulb instead of two) than it is specified for. Apparently that is not good, so be sure to replace blown bulbs! The other one was to replace an inferior and much cheaper looking transformer that worked OK, but that made a very audible of humming noise even at full power. These units are quiet though not totally silent. No issues here. Happy to be able to buy so conveniently from Amazon.com because local electrical supply houses don’t seem to carry them.
Works as Advertised Works as it should. Be careful not to simply measure the output voltage with a non RMS meter and expect to see 12vac. I read somewhere in a tutorial that the output frequency is too high for a normal meter to pick it up. I thought it didn’t work at first but then just hooked it in and lit the light.
